C1-nano-S // technické parametry

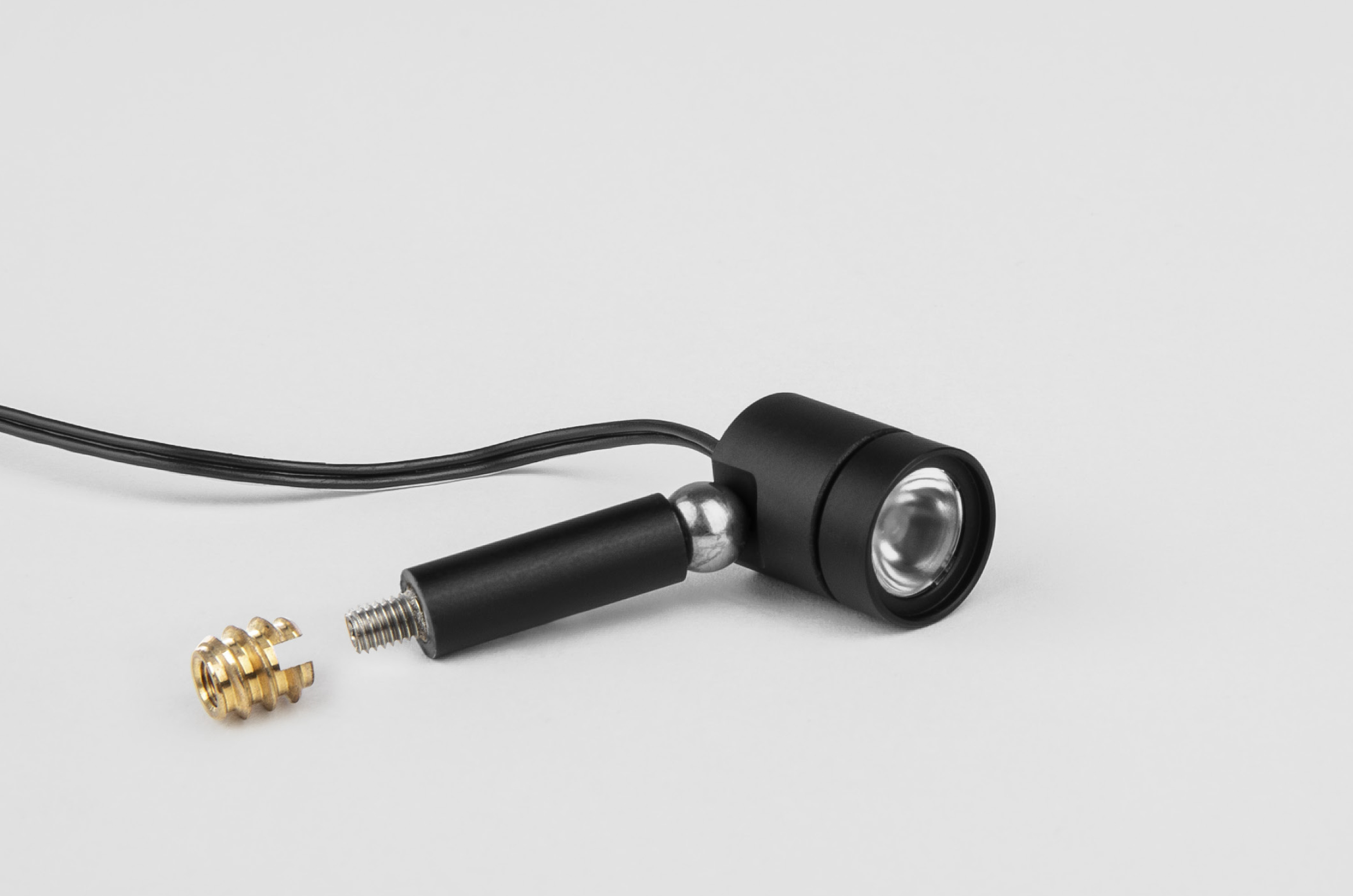

| description: | LED spotlight for installation in display cases, 360° rotatable, 150° swivelling, with magnetic base or screw base |
| part number: | A400455 |
| housing colour: | aluminum anodised matte in black, silver, gold, champagne, bronze (other surface finishing on request) |
| optics: | 15°, 18°, 26°, 30°, 45°, 80°, 47°+25°, 40°+10° |
| light colour (+/- 100 K): | ~2,700 K, ~3,000 K, ~3,500 K, ~4,000 K, ~5,700 K |
| high power LED, high CRI: | DIN EN 55015:2019, lifetime 50,000 hours | basis of lifetime L80B10 |
| luminous flux (~3,000 K | 30°): | ~74 lm at ~1 W |
| power input: | 300 mA (constant current) |
| allowed LED driver: | LED driver for the Mini Jolly and Maxi Jolly by TCI with constant current (other LED driver on request) |
| dimming: | external via potentiometer 0-10V, Casambi, DALI, DMX connectable, group dimming and individual dimming possible |
| protection class: | IP 20, protection class III, CE |
| optional accessories: | honeycomb grid, anti-glare tube, slash cut tube, light diffusion foil |
C1-mini-S vs. C1-nano-S
