C1-mini-DL // Technical Data

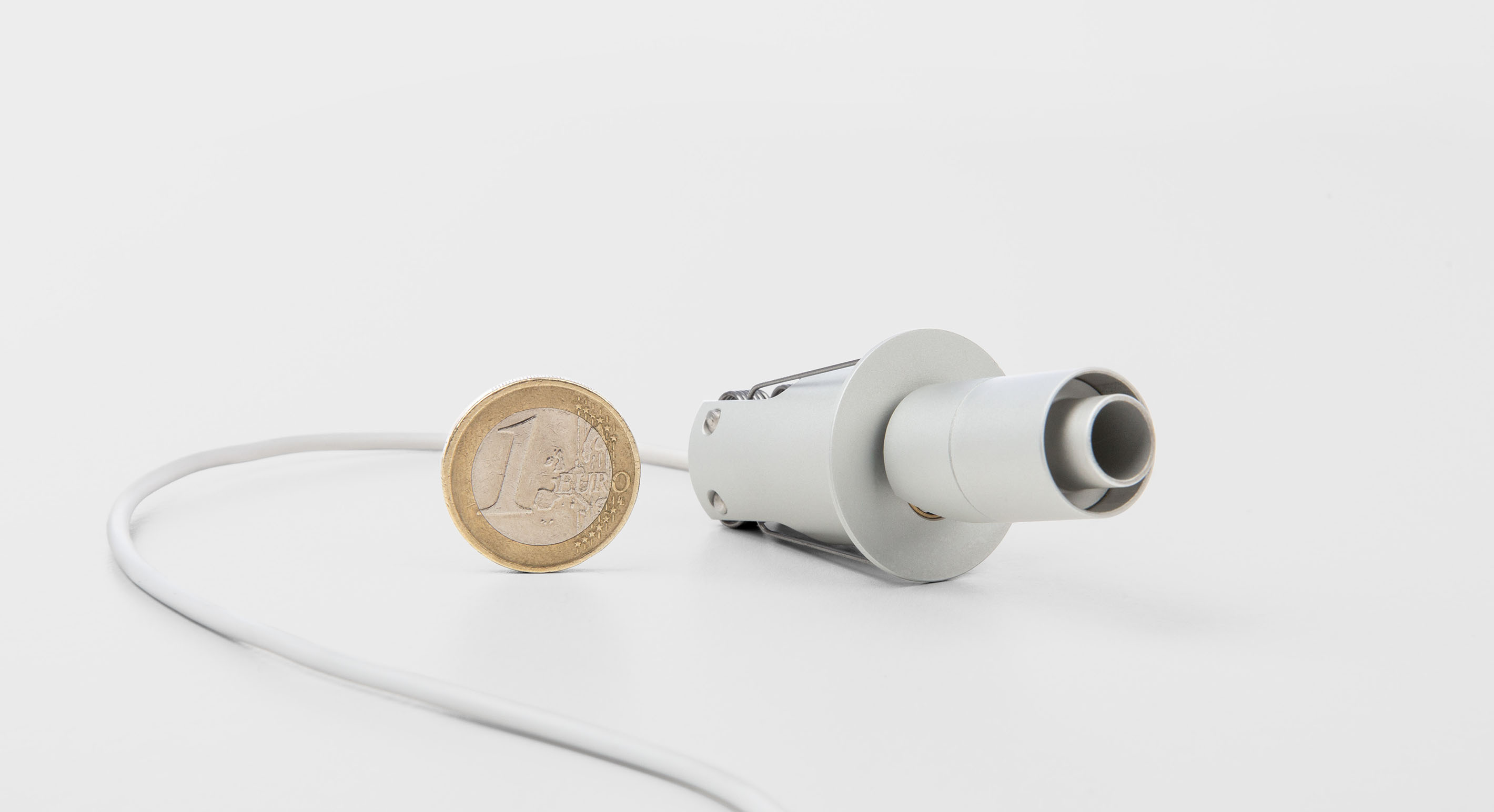

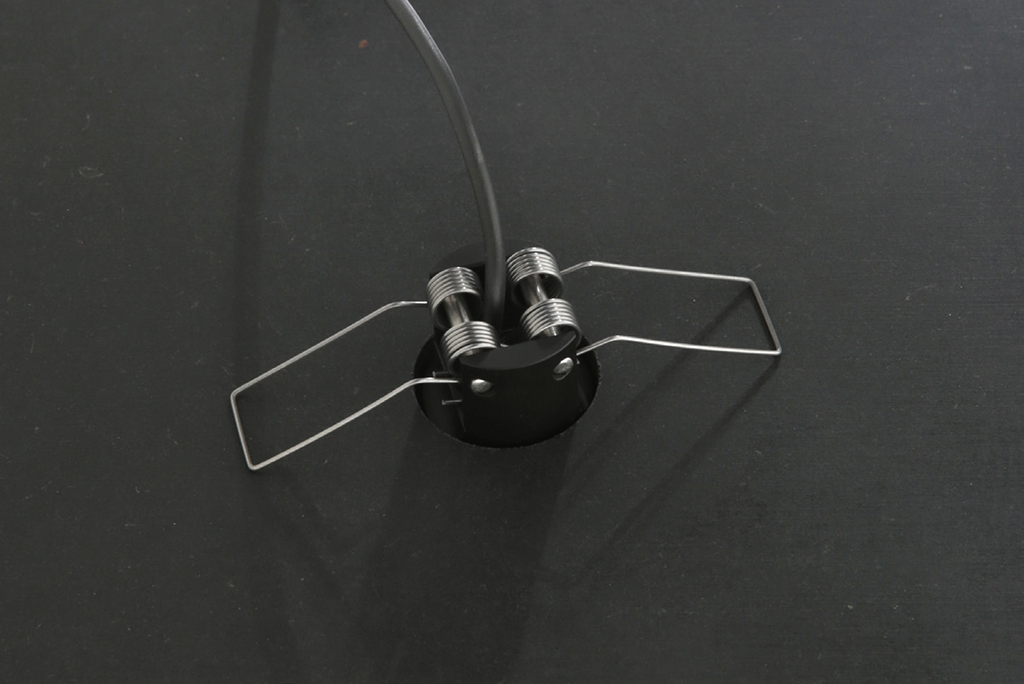

description: LED spotlight for installation in display case ceilings,
360° rotatable, 55° swivelling
part number: A400003
housing colour: aluminum anodised matte in black, silver, gold, champagne
(other surface finishing on request)
optics: 8°, 15°, 18°, 26°, 30°, 45°, 80°, 47°+25°, 40°+10°
light colour (+/- 100 K): ~2,700 K, ~3,000 K, ~3,500 K, ~4,000 K, ~5,700 K
high power LED, high CRI: DIN EN 55015:2013, lifetime 50,000 hours | basis of lifetime L80B10
luminous flux (~3,000 K | 30° | 500 mA): ~150 lm at ~2.7 W (57l m/W)
power input: 500 mA (constant current)
allowed LED driver: LED driver for the Micro Jolly, Mini Jolly, Maxi Jolly by TCI with constant current
(other LED driver on request)
dimming: external via potentiometer (incl.)
protection class: IP 20, protection class III, CE,
UL Listed No. E506729 - low voltage LED luminaire
optional accessories: honeycomb grid, anti-glare tube, inclined tube, snoot (8°),
light diffusion foil, barn doors, zoom optic (9° -33°)
