C1-mini-HC-VL // Technical Data

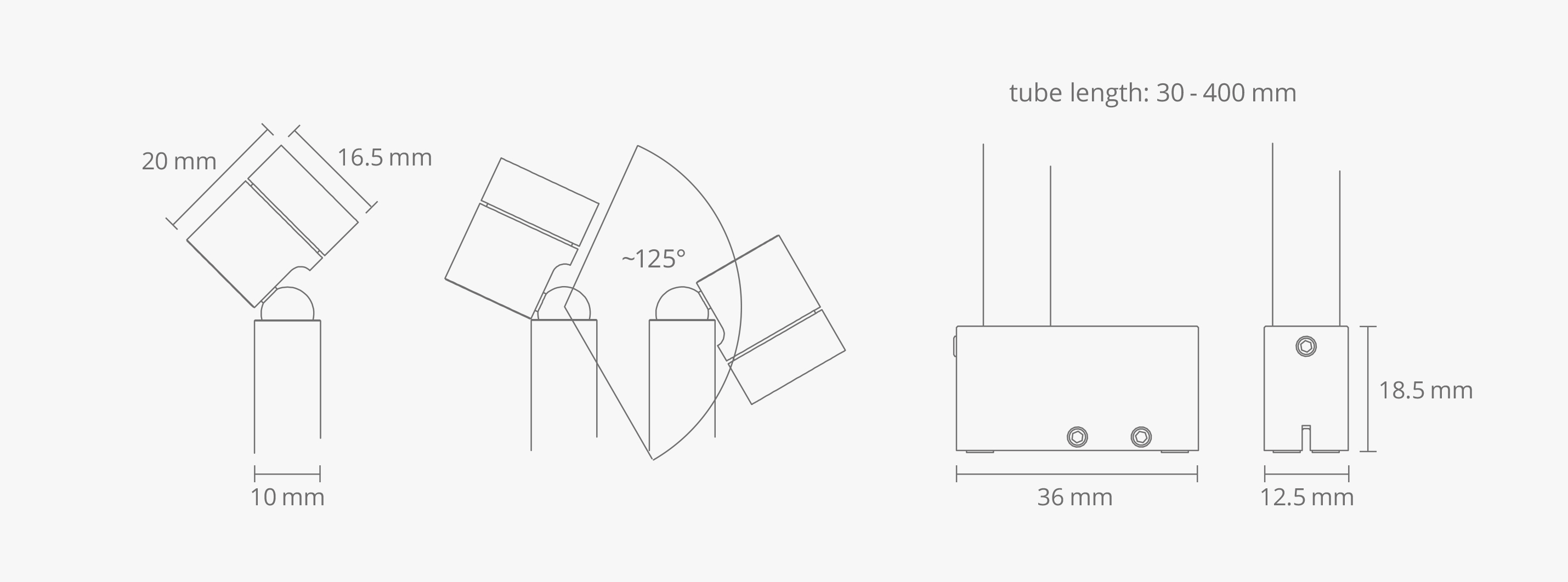

| description: | LED spotlight for installation on magnetic track, 360° rotatable, 90° swivelling |
| part number: | A400007 |
| housing colour: | aluminum anodised matte in black, silver, gold, champagne (other surface finishing on request) |
| optics: | 8°, 15°, 18°, 26°, 30°, 45°, 80°, 47°+ 25°, 40°+ 10° |
| light colour (+/- 100 K): | ~2,700 K, ~3,000 K, ~3,500 K, ~4,000 K, ~5,700 K |
| high power LED, high CRI: | DIN EN 55015:2013, lifetime 50,000 hours | basis of lifetime L80B10 |
| protection class: | IP 20, protection class III, CE |
| luminous flux (~3,000 K | 30°): | ~60 lm at ~1.0 W (60 lm/W) ~110 lm at ~2.0 W (55 lm/W) |
| power input: | 12V DC (constant voltage) |
| allowed LED driver: | power supply of LPF, NPF or APV series by MeanWell with constant voltage 12V DC, class 2 (other power supplies on request) |

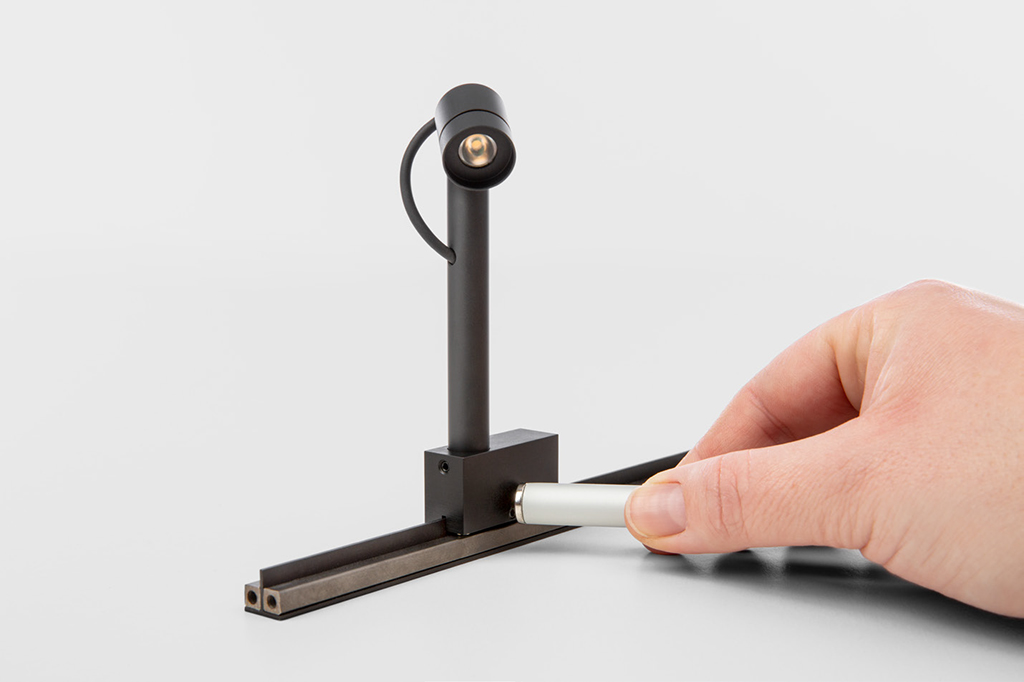

| dimming: | on board with dimming pen (incl.) |
| accessory: | magnetic track T |
| optional accessories: | magnetic track holders, honeycomb grid, anti-glare tube, inclined tube, snoot (8°), light diffusion foil, barn doors, zoom optic (9° - 33°) |
