R-SL-16-V // Technical Data
description: | LED light bar, profile Ø 16mm, 360° rotatable |
housing colour: | aluminum anodised black, silver, gold |
optic: | linear optics with ~22°, ~35°, ~50°, ~55° beam angle, 240 LEDs/m (smallest separable unit 25 mm) |
light colour (+/- 100K): | ~2,700 K, ~3,000 K, ~4,000 K, Tunable White ~2,700 K - 6,500 K |
mid power LED, high CRI: | DIN EN 55015:2013, lifetime 50,000 hours | basis of lifetime L80B10 |
protection class: | IP 20, protection class III, CE, UL Listed No. E506729 - low voltage LED luminaire |
max. luminous flux (~3,000 K | linear optic ~50°): |
~400 lm/m at ~7 W/m (57 lm/W), ~900 lm/m at ~15 W/m (60 lm/W) |
power input: | 24V DC constant voltage |
allowed LED supply: |
|
dimming: | external |

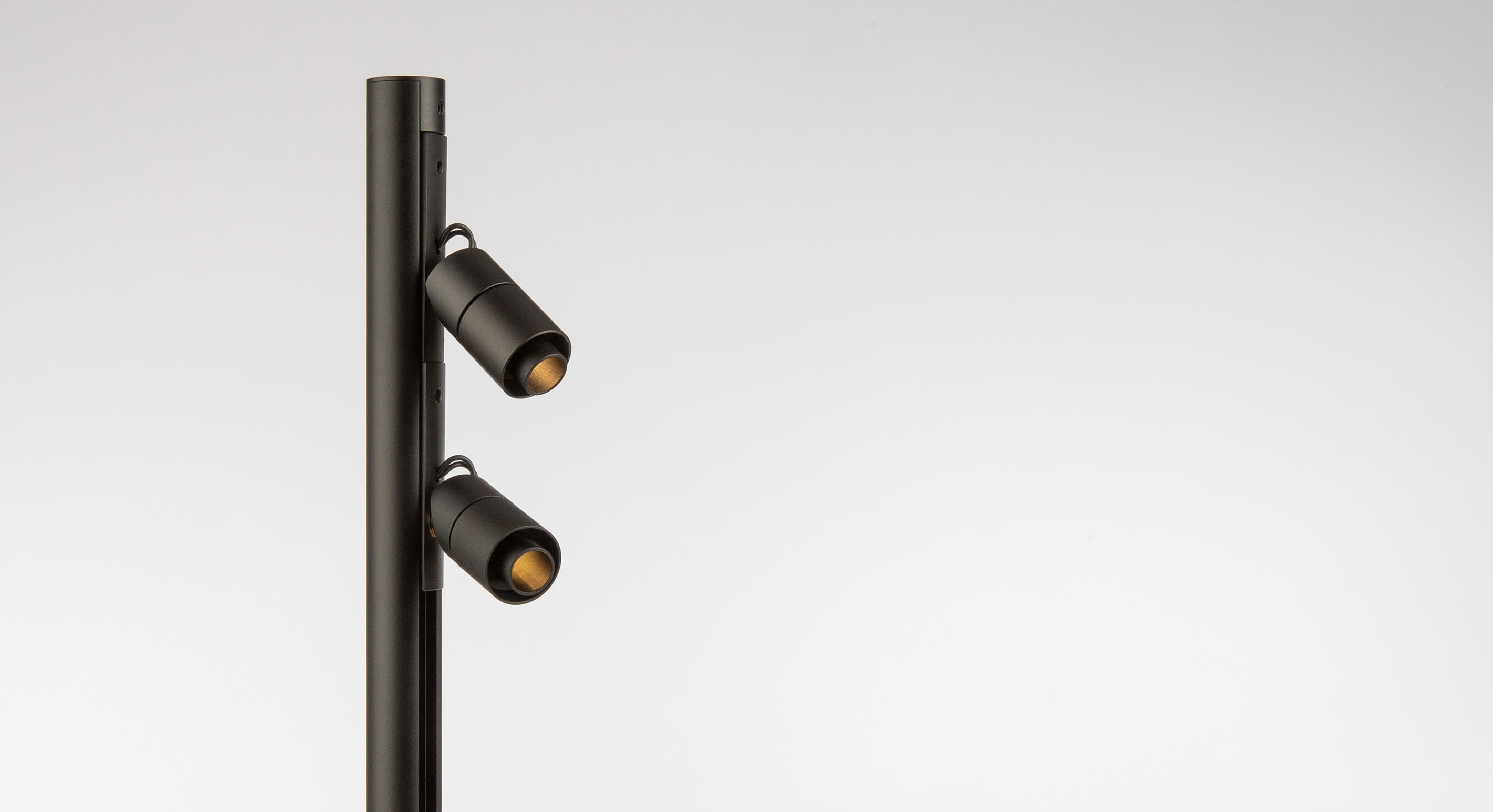

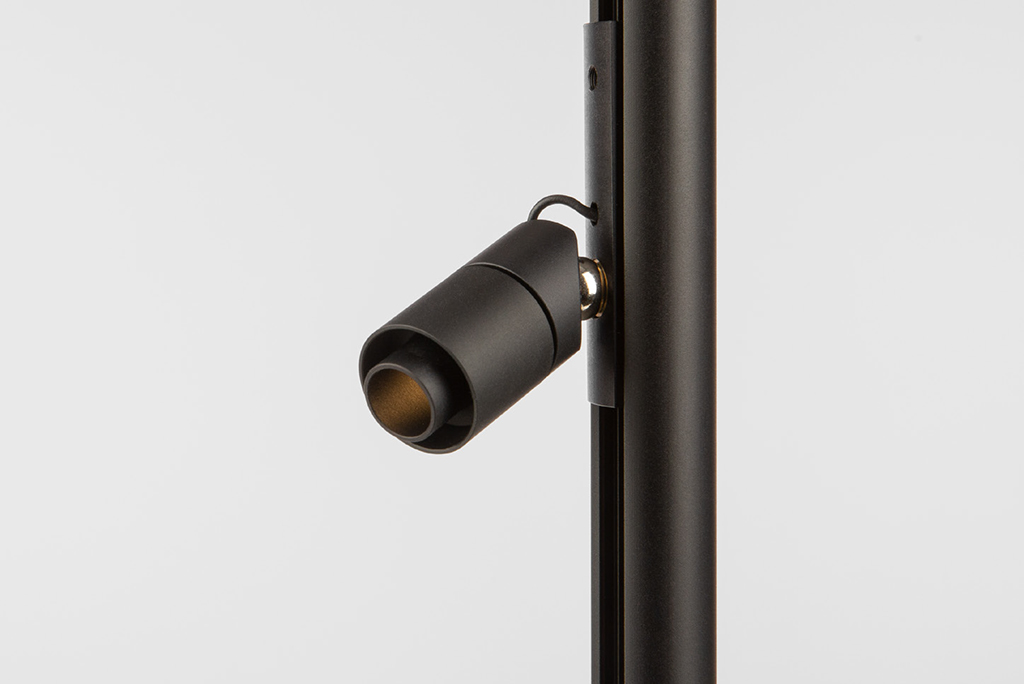

optional accessory: | anti-glare profile, aluminium anodised black, silver, gold or powder-coated according to RAL, light diffusion foil, cardboard cover strips, LED spotlight C1-mini-R-SL |

- max. profile length 2000 mm,
individual cut from 100 mm
to 2000 mm - additional height adjustable
via flange - panel thickness 2 - 23 mm
- borehole Ø 16.5 mm
