R-SL-16-TG // Technical Data

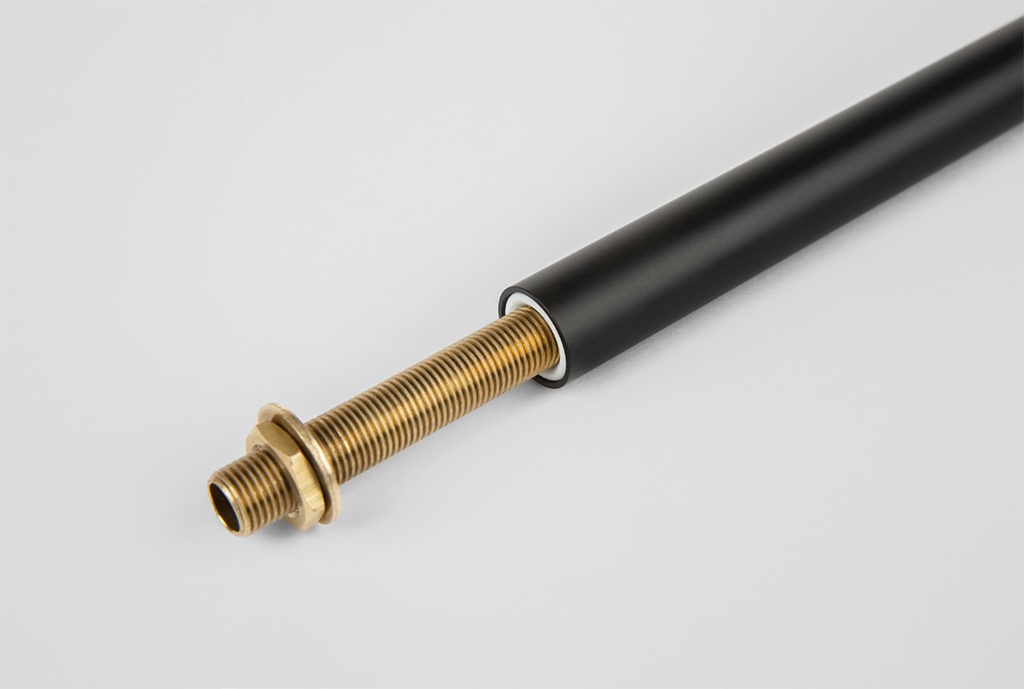

description: LED light bar for table, profile Ø 16mm,
360° rotatable
housing colour: aluminium anodised black, silver, gold
optic: linear optics with ~22°, ~35°, ~50°, ~55° beam angle,
240 LEDs/m (smallest separable unit 25 mm)
light colour (+/- 100K): ~2,700 K, ~3,000 K, ~4,000 K, Tunable White ~2,700 K - 6,500 K
mid power LED, high CRI: DIN EN 55015:2013, lifetime 50,000 hours | basis of lifetime L80B10
protection class: IP 20, protection class III, CE,
UL Listed No. E506729 - low voltage LED luminaire
max. luminous flux
(~3,000 K | linear optic ~50°):
~400 lm/m at ~7 W/m (57 lm/W),
~900 lm/m at ~15 W/m (60 lm/W)
power input: 24V DC constant voltage
allowed LED supply:
  • power supply of PWM series by MeanWell
    with constant voltage 24V DC, class 2
  • additional power supply is required for C1-mini-R-SL
    spotlight: LPF, LPV, NPF or APV by MeanWell with
    constant voltage 12V DC, class 2

    (other power supplies on request)
dimming: external
optional accessory: anti-glare profile, aluminium anodised black, silver, gold
or powder-coated according to RAL, light diffusion foil,
LED spotlight C1-mini-R-SL
