R1 // Technical Data

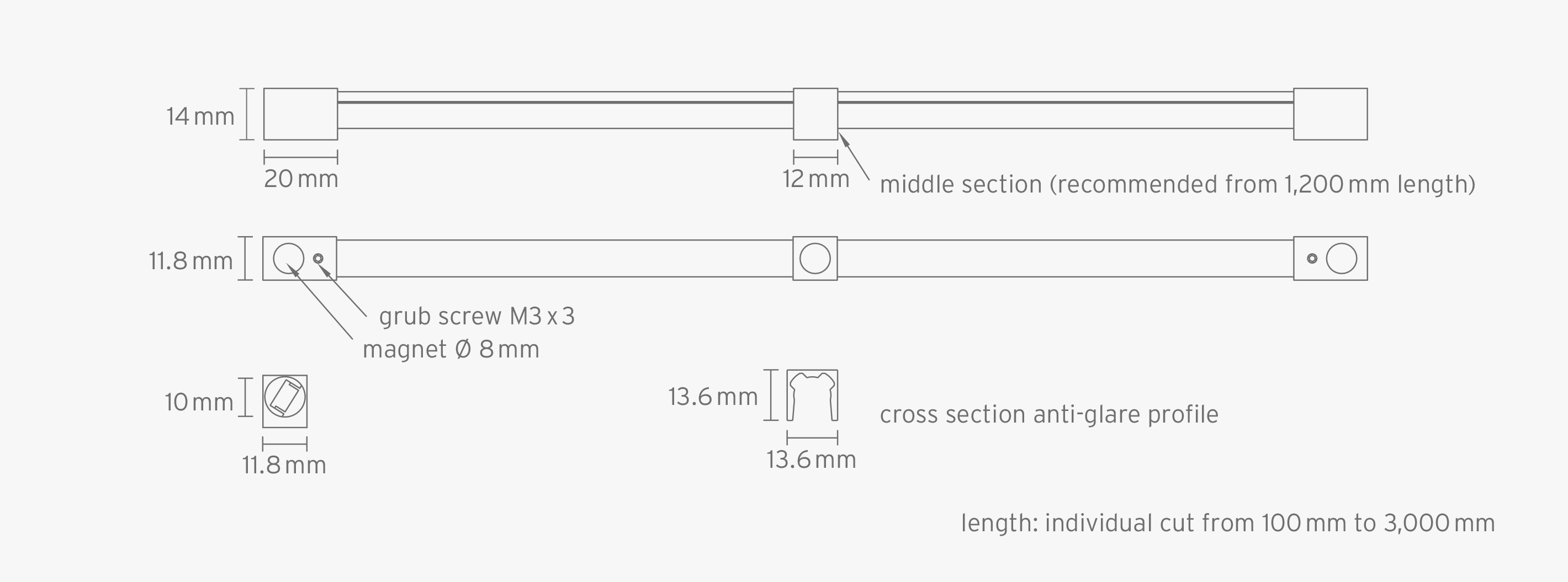

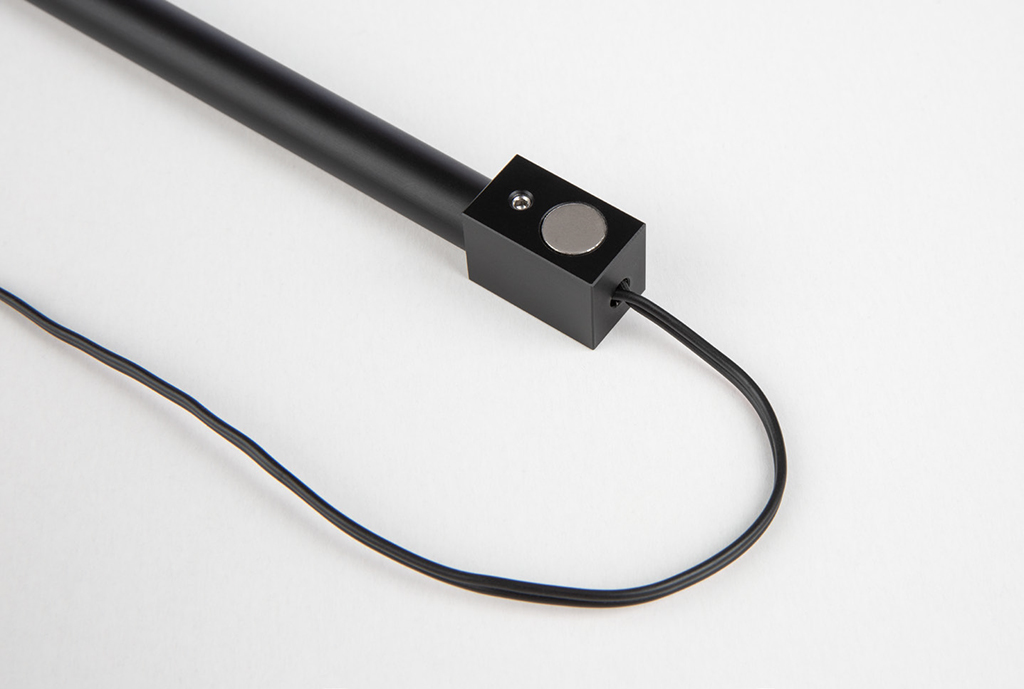

description: | LED light bar, profile Ø 10 mm, mountable magnetic, rotatable 360° |
part number: | A400101 |
housing colour: | aluminum anodised black, silver, gold |
protection class: | IP 20, protection class III, CE UL Listed No. E506729 - low voltage LED luminaire |
power input: | 24V DC constant voltage |
allowed LED supply: | power supply of PWM series by MeanWell with constant voltage 24V DC, class 2 (other power supplies on request) |
dimming: | external |

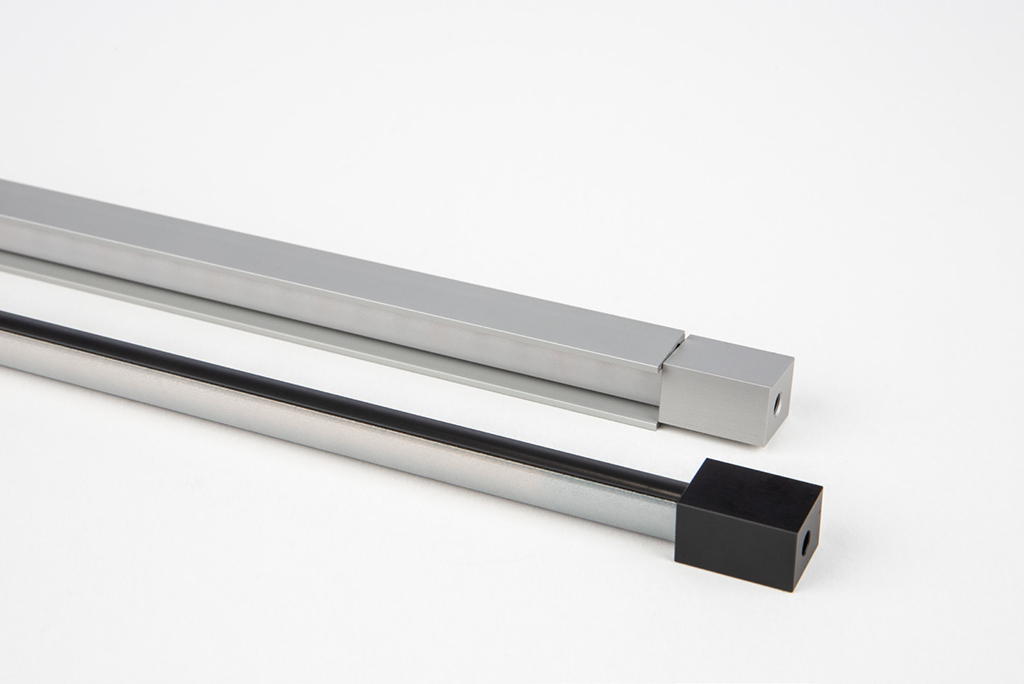

optional accessories: | anti-glare profile 13.6 x 13.6 mm, anodised aluminium or powder-coated according to RAL |
R1 - 7W
optic: | linear optics satined with ~50° or ~60° beam angle |
light colour (+/- 100K): | ~2,700 K, ~3,000 K, ~4,000 K, Tunable White ~2,700 K - 6,500 K |
mid power LED, high CRI: |
|
luminous flux (~3,000 K | ~50°): | ~400 lm/m at ~7 W/m (57 lm/W) |
R1 - 15W
optic: | linear optics satined with ~70° beam angle |
light colour (+/- 100K): | ~3,000 K |
mid power LED, high CRI: |
|
luminous flux (~3,000 K | ~70°): | ~900 lm/m at ~15 W/m (60 lm/W) |
R1 - 20W
optic: | linear optics satined with ~50° or ~60° beam angle |
light colour (+/- 100K): | ~3,000 K |
mid power LED, high CRI: |
|
luminous flux (~3,000 K | ~50°): | ~1300 lm/m at ~20 W/m (65 lm/W) |
