C1-mini-E // Technical Data

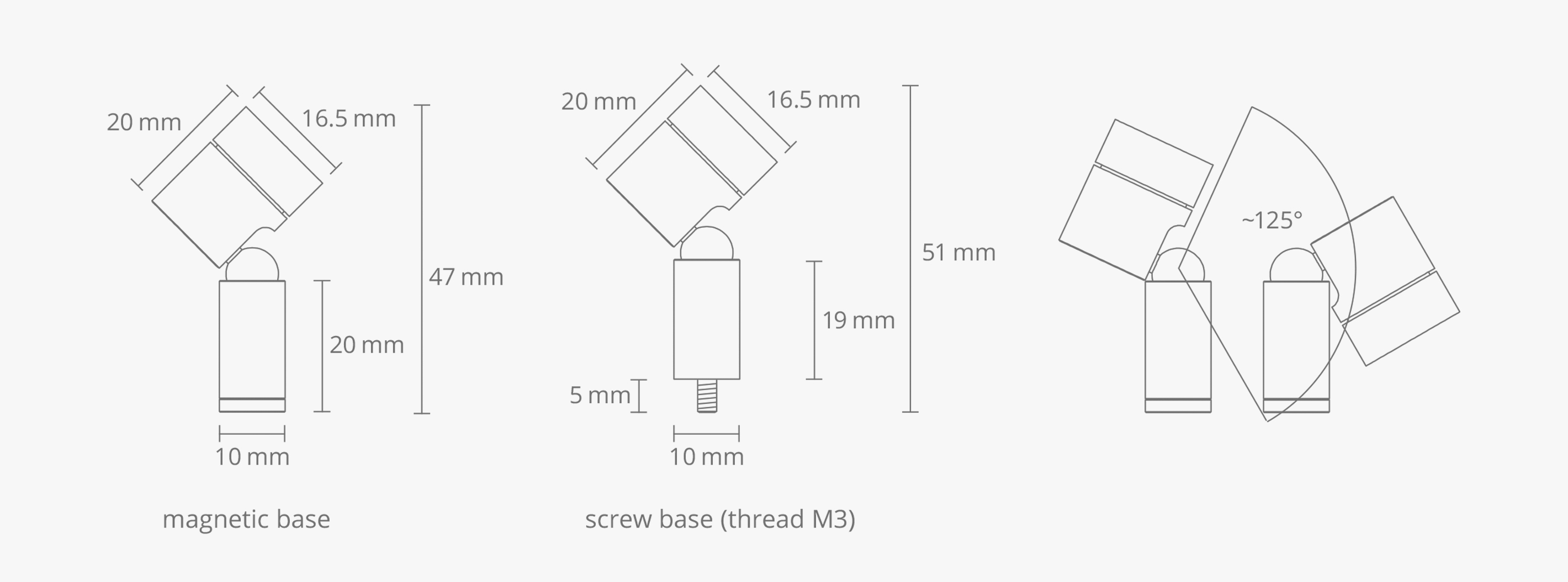

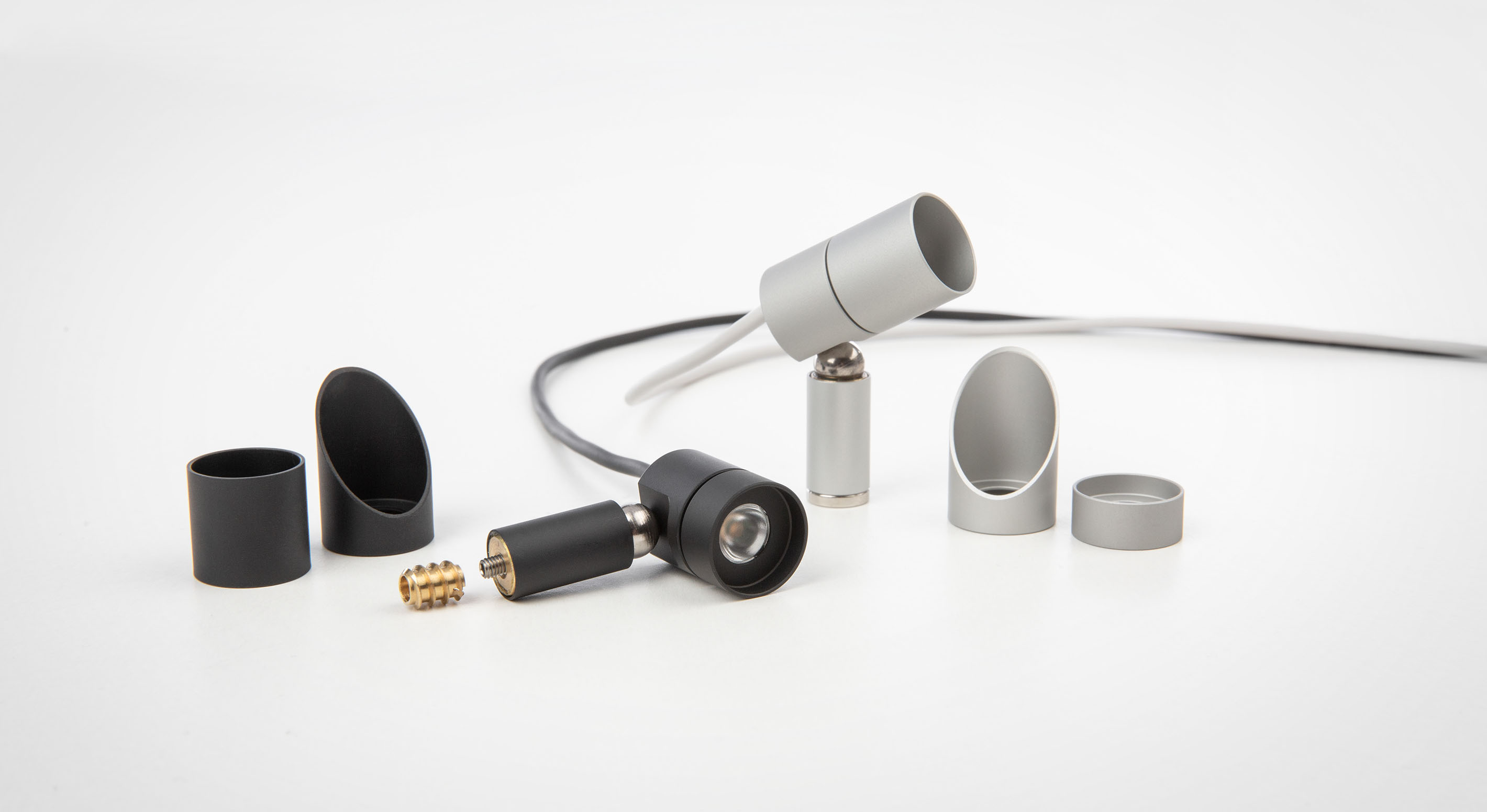

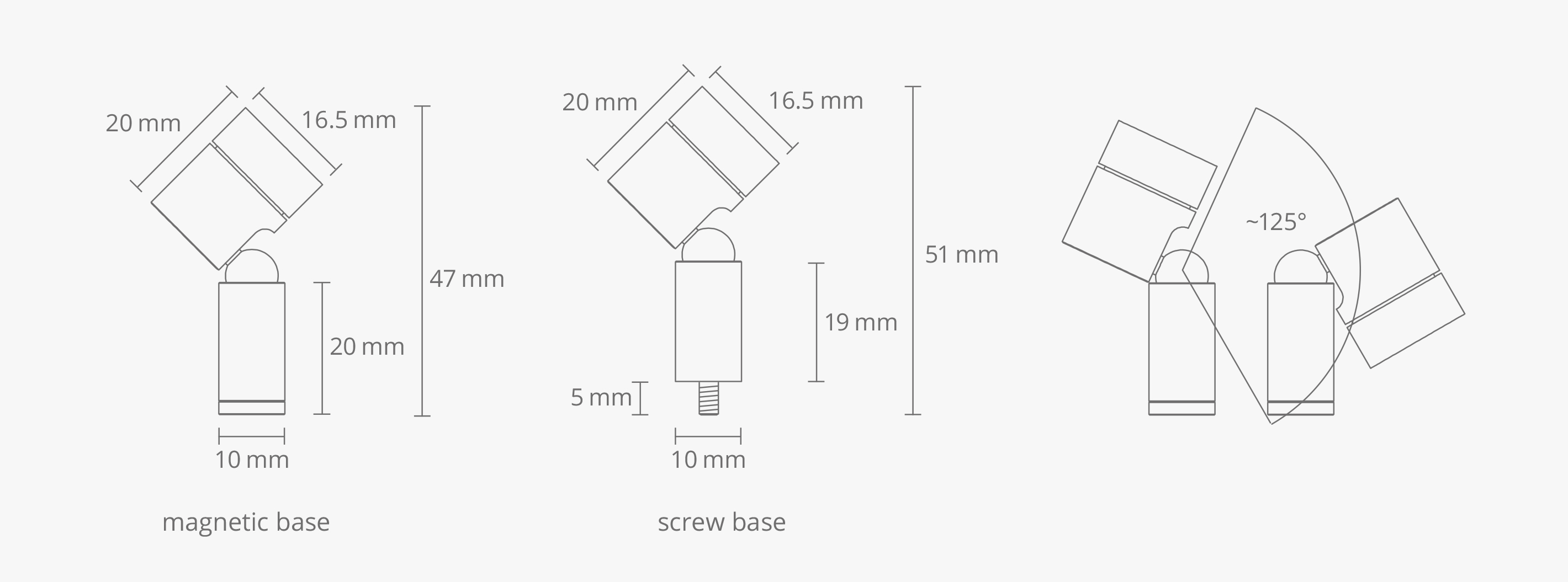

description: | LED spotlight for installation in display cases, 360° rotatable, 125° swivelling, with screw base or magnetic base |
part number: | A400004 |
housing colour: | aluminum anodised matte in black, silver, gold, champagne (other surface finishing on request) |
lenses: | 8°, 15°, 18°, 26°, 30°, 45°, 80°, 47°+ 25°, 40°+ 10° |
light colour (+/- 100 K): | ~2,700 K, ~3,000 K, ~3,500 K, ~4,000 K, ~5,700 K |
high power LED, high CRI: | DIN EN 55015:2013, lifetime 50,000 hours | basis of lifetime L80B10 |
luminous flux (~3,000 K | 30° | 500 mA): | ~140 lm at ~2.2 W (63 lm/W) |
power input: | 500 mA (constant current) |
allowed LED driver: | LED driver for the Micro Jolly, Mini Jolly, Maxi Jolly by TCI with constant current (other LED driver on request) |
dimming: | external via potentiometer (incl.) |
protection class: | IP 20, protection class III, CE, UL Listed No. E506729 - low voltage LED luminaire |
optional accessories: | honeycomb grid, anti-glare tube, inclined tube, snoot (8°), light diffusion foil, barn doors |
