C1-mini-LC-VL // Technical Data

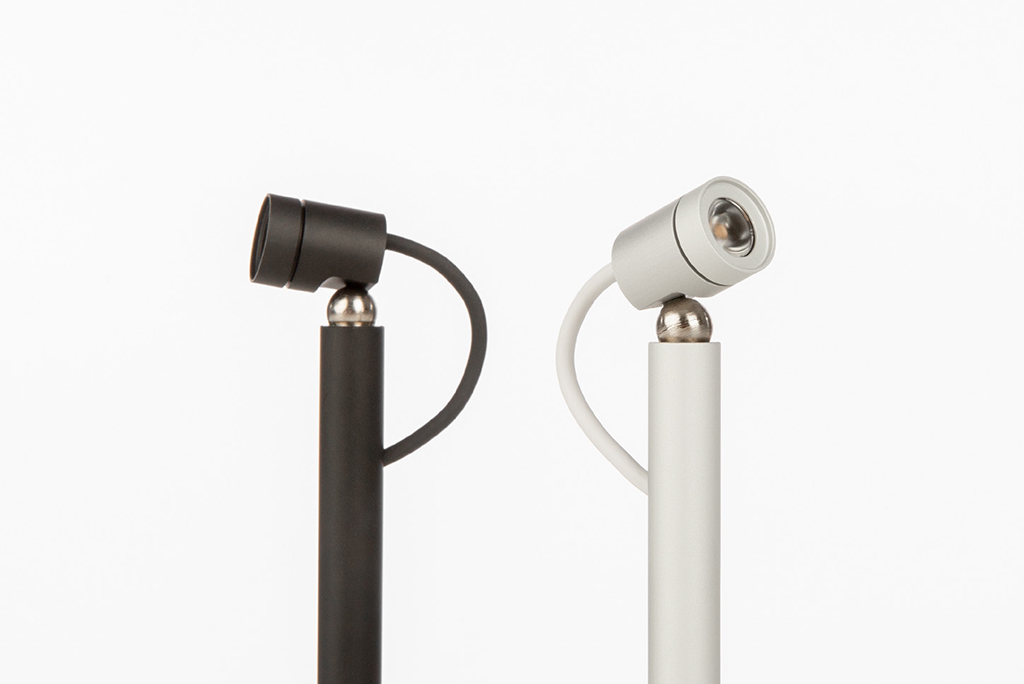

description: LED spotlight for installation on magnetic track,
360° rotatable, 135° swivelling
part number: A400010
housing colour: aluminum anodised matte in black, silver, gold, champagne
(other surface finishing on request)
optics: 15°, 18°, 26°, 30°, 45°, 80°, 47°+ 25°, 40°+ 10°
light colour (+/- 100 K): ~2,700 K, ~3,000 K, ~3,500 K, ~4,000 K, ~5,700 K
high power LED, high CRI: DIN EN 55015:2013, lifetime 50,000 hours | basis of lifetime L80B10
protection class: IP 20, protection class III, CE
luminous flux (~3,000 K | 30°): ~60 lm at ~1 W (60 lm/W)
power input: 12V DC (constant voltage)
allowed LED driver:
  • power supply of PWM series by MeanWell
    with constant voltage 9 - 12V DC, class 2
  • power supply of LPF, NPF or APV series by MeanWell
    with constant voltage 12V DC, class 2
    in combination with dimmer by feno

    (other power supplies on request)
dimming: external via potentiometer (incl.)

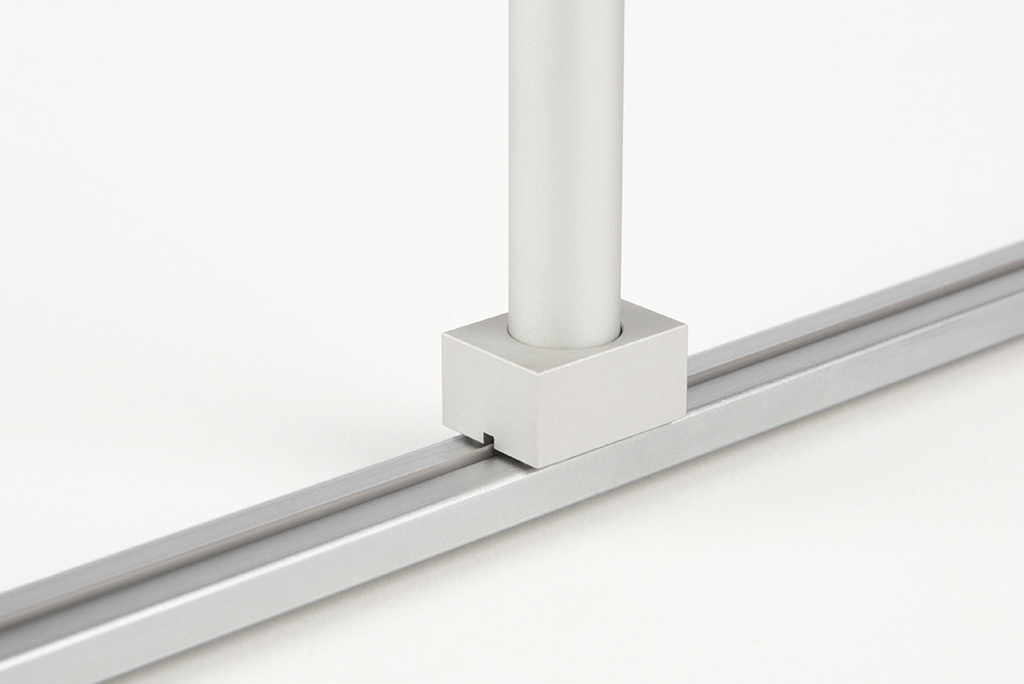

accessory: magnetic track
optional accessories: magnetic track holders,
anti-glare tube, honeycomb grid, inclined tube, light diffusion foil, barn doors
