C1-mini-UHC // Technical Data

  IP 20 IP 44

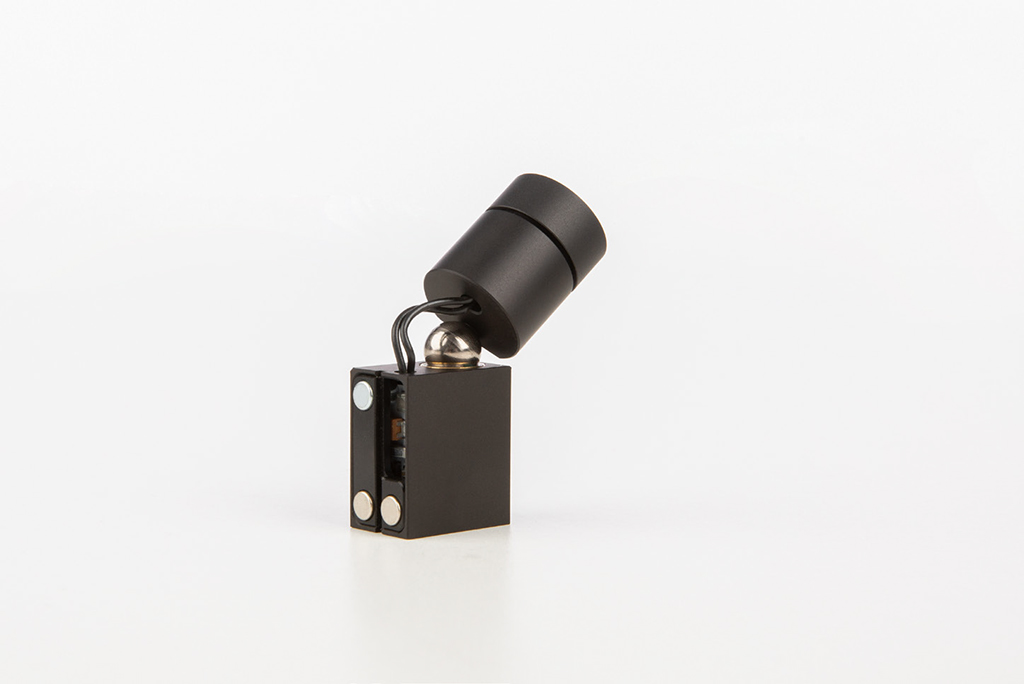

description: LED spotlight for installation on magnetic track,
180° rotatable, 90° swivelling
LED spotlight for installation on magnetic track,
180° rotatable, 90° swivelling
part number: A400014 A400436

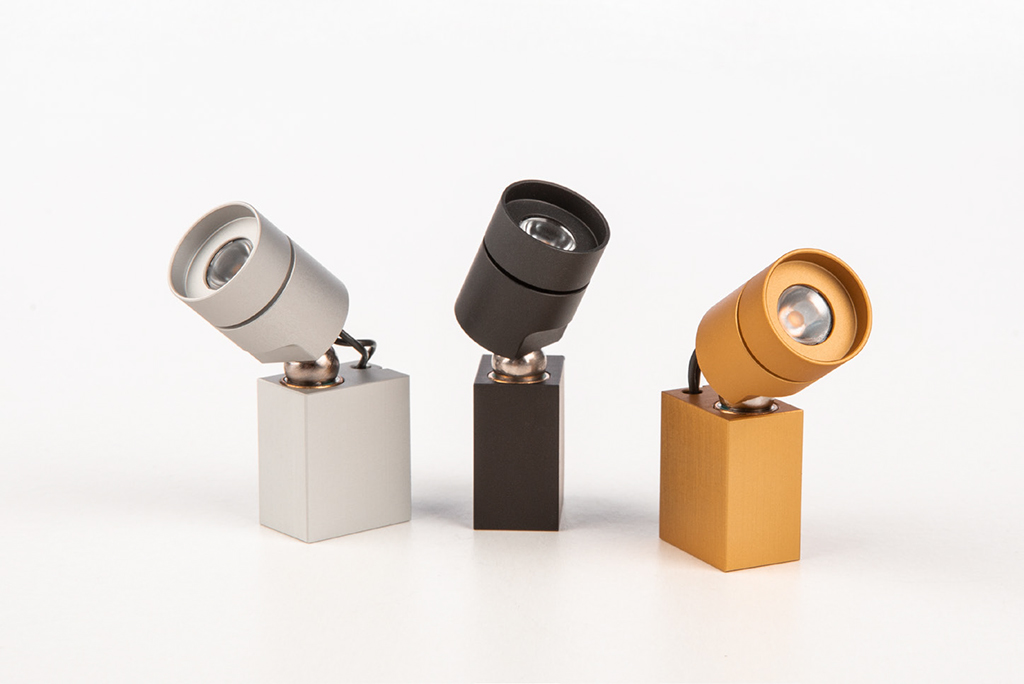

housing colour: aluminum anodised matte in black, silver, gold, champagne (other surface finishing on request) aluminum anodised matte in black, silver, gold, champagne (other surface finishing on request)
optics: 8°, 15°, 18°, 26°, 30°, 45°, 80°, 47°+ 25°, 40°+ 10° 8°, 15°, 18°, 26°, 30°, 45°, 80°, 47°+ 25°, 40°+ 10°
light colour (+/- 100 K): ~2,700 K, ~3,000 K, ~3,500 K, ~4,000 K, ~5,700 K ~2,700 K, ~3,000 K, ~3,500 K, ~4,000 K, ~5,700 K
high power LED, high CRI: DIN EN 55015:2013, lifetime 50,000 hours | basis of lifetime L80B10 DIN EN 55015:2013, lifetime 50,000 hours | basis of lifetime L80B10
protection class: IP 20, protection class III, CE IP 44, protection class III, CE
luminous flux (~3,000 K | 30°): ~140 lm at ~2.3 W (61 lm/W) ~110 lm at ~2.0 W (55 lm/W)
power input: 12V DC (constant voltage) 12V DC (constant voltage)
allowed LED driver: power supply of LPF, NPF or APV series by MeanWell with constant voltage 12V DC, class 2 in combination with dimmer by feno
(other power supply on request)
power supply of LPF, NPF or APV series by MeanWell with constant voltage 12V DC, class 2 in combination with dimmer by feno
(other power supply on request)
dimming: external external
accessory: magnetic track magnetic track
optional accessories: magnetic track holders, honeycomb grid, anti-glare tube, inclined tube, snoot (8°), light diffusion foil, barn doors, zoom optic (9° - 33°) magnetic track holders, honeycomb grid, anti-glare tube, inclined tube, snoot (8°), light diffusion foil, barn doors, zoom optic (9° - 33°)
