C2-S // Technical Data

  single lens triple lens

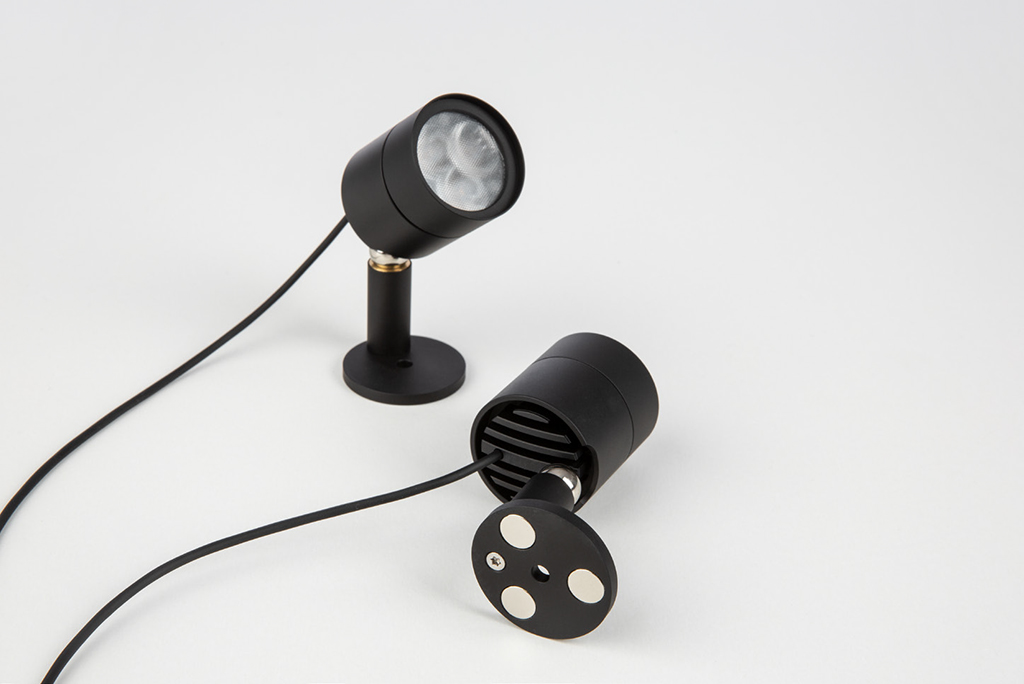

description: LED spotlight for installation in display cases,
360° rotatable, 180° swivelling,
with screw base or magnetic base
LED spotlight for installation in display cases,
360° rotatable, 180° swivelling,
with screw base or magnetic base
part number: A400021 A400022
housing colour: aluminum anodised matte
in black, silver, gold, champagne
(other surface finishing on request)
aluminum anodised matte
in black, silver, gold, champagne
(other surface finishing on request)
optics: 14°, 25°, 60°, 40°+ 15° 18°, 25°, 32°, 67°
light colour (+/- 100 K): ~2,700 K, ~3,000 K, ~3,500 K, ~4,000 K, ~5,700 K ~2,700 K, ~3,000 K, ~3,500 K, ~4,000 K, ~5,700 K
high power LED, high CRI: DIN EN 55015:2013, lifetime 50,000 hours |
basis of lifetime L80B10
DIN EN 55015:2013, lifetime 50,000 hours |
basis of lifetime L80B10
luminous flux (~3,000 K | 25°): ~260 lm at ~3.5 W (74 lm/W)  ~310 lm at ~4.5 W (69 lm/W)
power input: 1050 mA (constant current) 500 mA (constant current)
allowed LED driver: LED driver for Maxi Jolly by TCI
and eldoLED Compact Stand-alone
with constant current
(other LED driver on request)
LED driver for the Micro Jolly, Mini Jolly,
Maxi Jolly by TCI
with constant current
(other LED driver on request)
dimming: external via potentiometer (incl.) external via potentiometer (incl.)
protection class: IP 20, protection class III, CE,
UL Listed No. E506729 - low voltage LED luminaire
IP 20, protection class III, CE,
UL Listed No. E506729 - low voltage LED luminaire
optional accessories: honeycomb grid, anti-glare tube, inclined tube, snoot (7°), light diffusion foil, barn doors honeycomb grid, anti-glare tube, inclined tube, snoot (7°), light diffusion foil, barn doors
