C1-STS // Technical Data

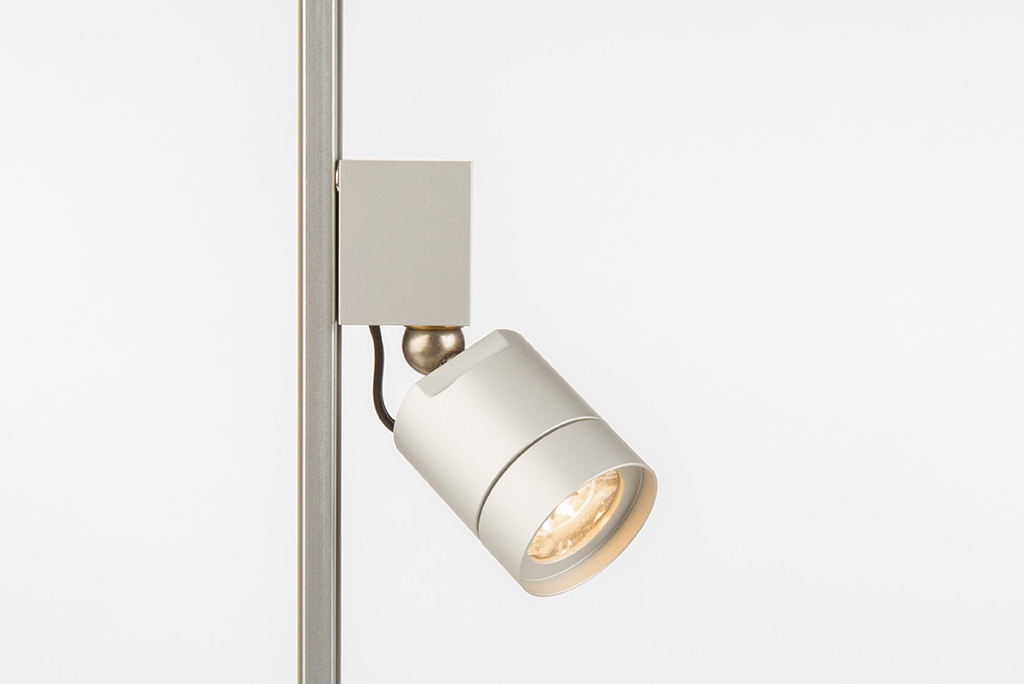

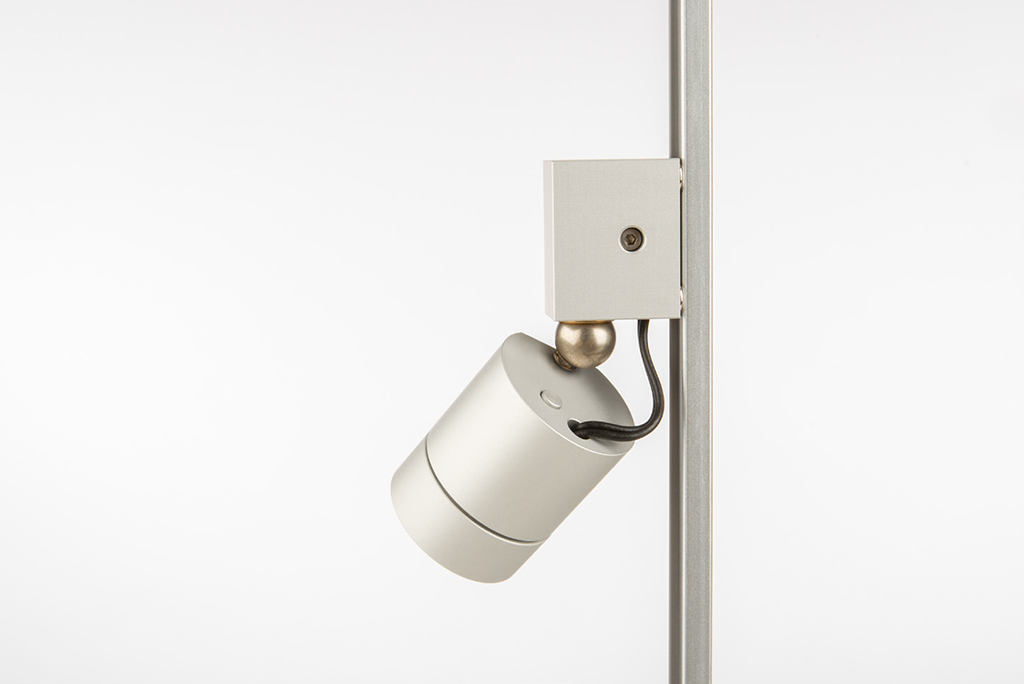

description: LED spotlight for installation on magnetic track,
180° rotatable, 90° swivelling
housing colour: aluminium anodised black, silver, gold
(other surface finishing on request)
optics: 10°, 15°, 20°, 35°, 45°, 46°+ 10°
light colour (+/- 100K): ~2,700 K, ~3,000 K, ~3,500 K, ~4,000 K, ~5,700 K
high power LED, high CRI: DIN EN 55015:2013, lifetime 50,000 hours | basis of lifetime L80B10
protection class: IP 20, protection class III, CE,
UL Listed No. E506729 - low voltage LED luminaire
max. luminous flux
(~3,000 K | standard lens 20°):
~110 lm at ~2,0 W (55 lm/W)
~125 lm at ~2,3 W (55 lm/W)
power input: 12V DC constant voltage
allowed LED driver: power supply for the LPF, LPV, NPF or APV by MeanWell
with constant voltage 12V DC, class 2
(other power supplies on request)
dimming: on board
accessory: magnetic track
optional accessory: magnetic track holders,
honeycomb grid, anti-glare tube, inclined tube, light diffusion foil, barn door,
zoom optic (2° - 25°, 6° - 36°)
