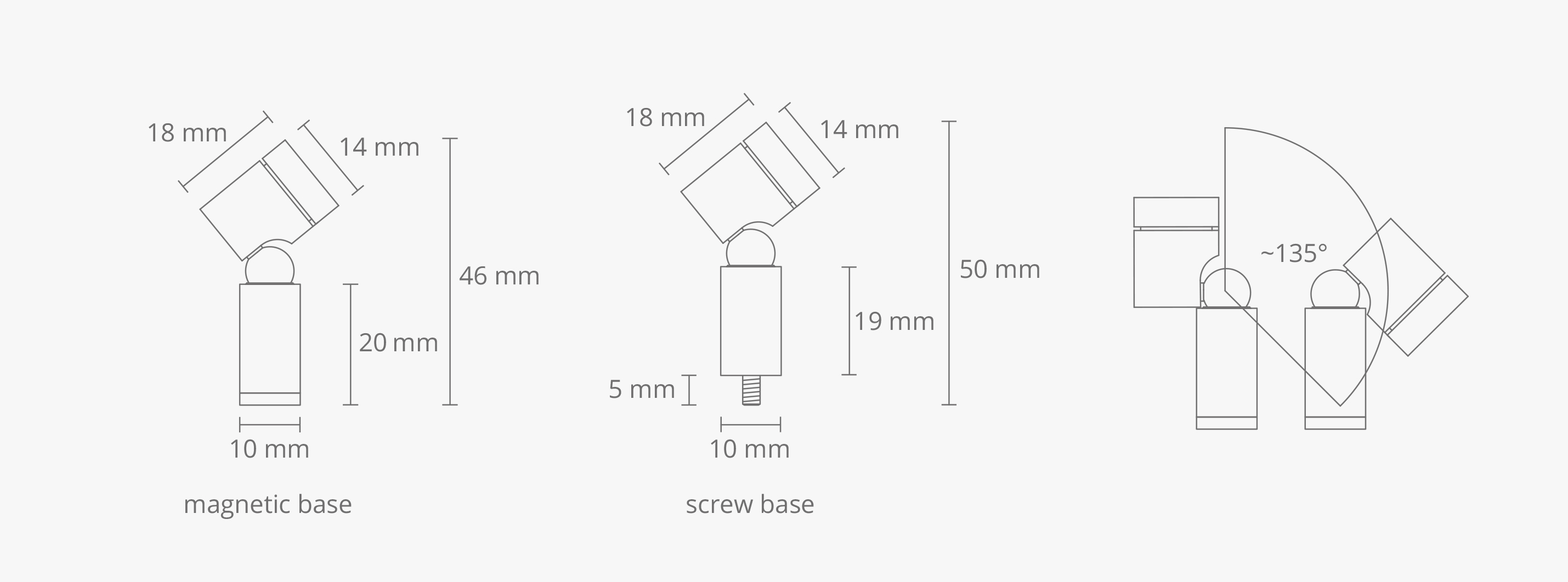

C1-mini-S // Technical Data

description: LED spotlight for installation in display cases,
360° rotatable, 135° swivelling,
with screw base or magnetic base
housing colour: aluminum anodised black, silver, gold
(other surface finishing on request)
optics: 15°, 18°, 26°, 30°, 45°, 80°, 47°+ 25°, 40°+ 10°
light colour (+/- 100K): ~2,700 K, ~3,000 K, ~3,500 K, ~4,000 K, ~5,700 K
high power LED, high CRI: DIN EN 55015:2013, lifetime 50,000 hours | basis of lifetime L80B10
max. luminous flux
(~3,000 K | standard lens 30°):
~130 lm at ~1.8 W (72 lm/W)
power input: constant current up to max. 600 mA
allowed LED driver: LED driver for the Micro Jolly, Mini Jolly, Maxi Jolly by TCI
with constant current
(other LED driver on request)
dimming: external via potentiometer (incl.)
protection class: IP 20, protection class III, CE
UL Listed No. E506729 - low voltage LED luminaire
optional accessory: honeycomb grid, anti-glare tube, inclined tube,
light diffusion foil, barn door
Focke Museum, Bremen | Photo: Martin Luther
