R1-T // Technical Data

description: LED light bar for table, profile Ø 10mm,
360° rotatable
housing colour: aluminum anodised black, silver, gold
optic: linear optics satined with ~50° or ~60° beam angle
240 LEDs/m (smallest separable unit 25 mm)
light colour (+/- 100K): ~2,700 K, ~3,000 K, ~4,000 K, Tunable White ~2,700 K - 6,500 K
mid power LED, high CRI: DIN EN 55015:2013, lifetime 50,000 hours | basis of lifetime L80B10
protection class: IP 20, protection class III, CE
UL Listed No. E506729 - low voltage LED luminaire
max. luminous flux
(~3,000 K | linear optic ~50°):
~400 lm/m at ~7 W/m (57 lm/W),
~900 lm/m at ~15 W/m (60 lm/W)
power input: 24V DC constant voltage
allowed LED supply: power supply of PWM series by MeanWell
with constant voltage 24V DC, class 2
(other power supplies on request)
dimming: external

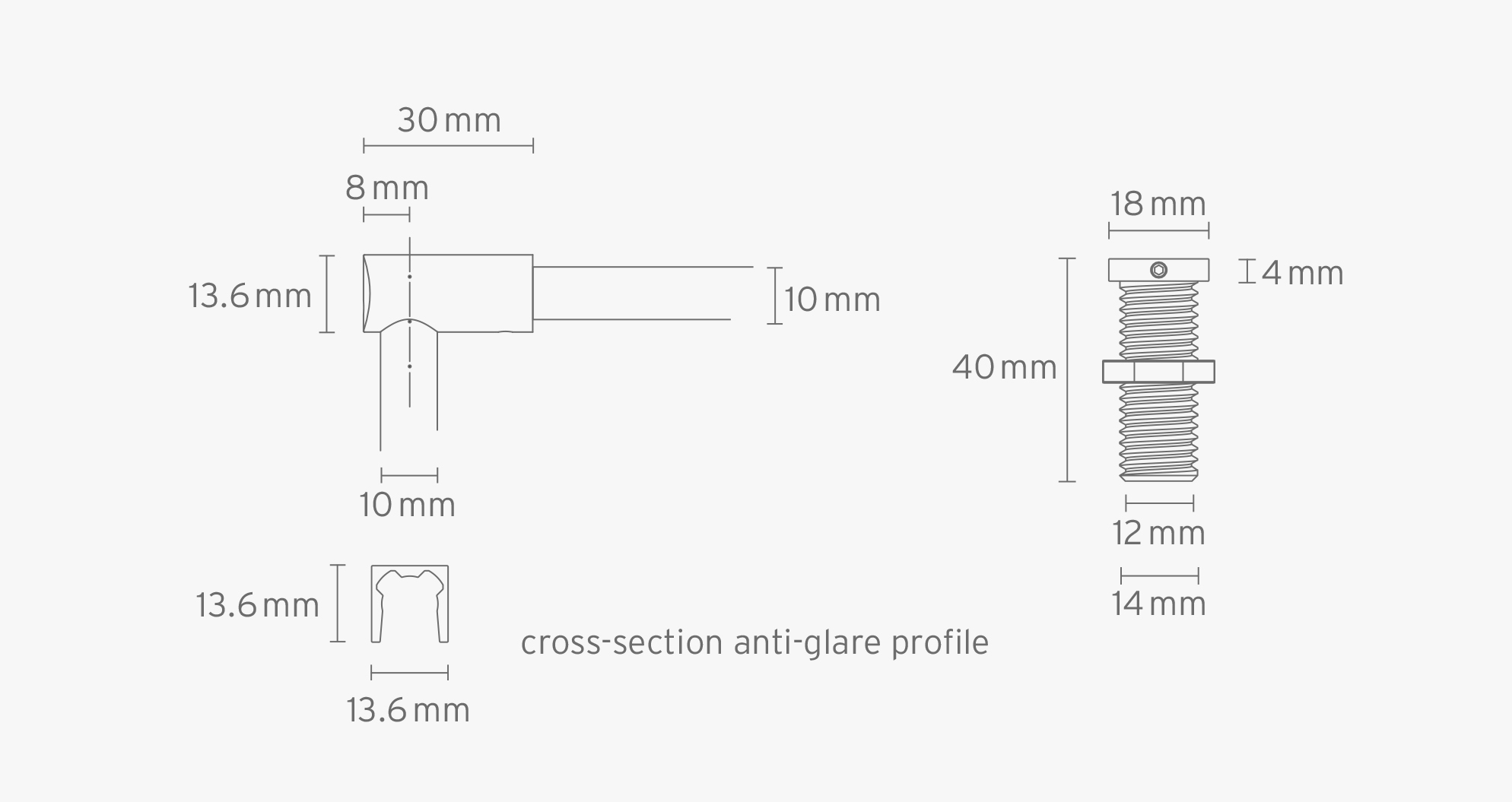

optional accessory: anti-glare profile 13.6 x 13.6 mm,
anodised aluminium or powder-coated according to RAL
  • length: individual cut from
    100 mm to 3,000 mm
  • center support recommended
    from 1,200 mm length
  • standard extension max. 440 mm
    (max. visible length 400 mm)
  • can be shortened on request
  • additional height adjustable via flange
  • panel thickness 2 - 23 mm
  • borehole Ø 14.5 mm
